Developing a Custom XML Processor

Connectors : Default Connectors : XML Connectors : Developing a Custom XML Processor

Develop Regular and Split Processors

Compile and Deploy a Custom Processor

The XML connector is able to run user-supplied code to process XML documents.

Develop Regular and Split Processors

Compile and Deploy a Custom Processor

Develop Regular and Split Processors

Every XML processor must implement com.exalead.papi.connectors.filesystem.xml.processors.common.PAPIXMLConnector.

However two typical implementations are more reusable: PAPIDOMProcessor and PAPISAXProcessor.

All processors are given a com.exalead.papi.helper.Document attribute called papiDocument where processor results must be applied.

Develop Regular Processors

To develop your own SAX processor, implement a regular SAX ContentHandler but extend PAPISAXProcessor, instead of DefaultHandler.

For example:

package com.exalead.papi.connectors.filesystem.xml.processors;
import com.exalead.papi.connectors.filesystem.xml.processors.common.PAPISAXProcessor;
import org.xml.sax.Attributes;
import org.xml.sax.InputSource;
import org.xml.sax.SAXException;
public class CustomSAXProcessor extends PAPISAXProcessor {
@Override
public void startDocument() throws SAXException {
/* TODO */
}
@Override
public void endDocument() throws SAXException {
/* TODO */
}
@Override
public void startElement(String uri, String localName, String name, Attributes
attributes) throws SAXException {
/* TODO */
}
@Override
public void endElement(String arg0, String localName, String arg2) throws
SAXException {
/* TODO */
}
@Override
public void characters(char[] arg0, int arg1, int arg2) throws SAXException {
/* TODO */
}
}

If you want to develop a DOM processor, extend PAPIDOMProcessor, and implement the process(org.w3c.dom.Document) method.

package com.exalead.papi.connectors.filesystem.xml.processors;
import com.exalead.papi.connectors.filesystem.xml.processors.common.PAPIDOMProcessor;
import org.w3c.dom.Document;
public class CustomDOMProcessor extends PAPIDOMProcessor {
@Override
public void process(Document domDocument) throws Exception {
/* TODO */
}
}

Develop Split Processors

To develop a splitting processor, extend either PAPIDOMProcessor or PAPISAXProcessor, and implement SplitProcessor.

For a configuration example, see processors.ChildSplitProcessor.

Compile and Deploy a Custom Processor

Requirements

For requirements on developing custom Java components, see "Customizing CloudView" in the Exalead CloudView Programmer's Guide.

Compile a Custom Processor

To compile a custom processor, you need the following jars in your build path:

• <DATADIR>/resource/all-arch/builtin_plugins_deployed/core-java-connectors-plugin/lib/core-java-connectors-plugin.jar

• <INSTALLDIR>/sdk/java-customcode/lib/papi-java-client.jar

Deploy a Custom Processor

1. Make a JAR containing the processor classes, for example, custom-processor.jar.

2. Copy the JAR to: <DATADIR>/resource/all-arch/builtin_plugins_deployed/core-java-connectors-plugin/lib/

3. Restart the connector server process.

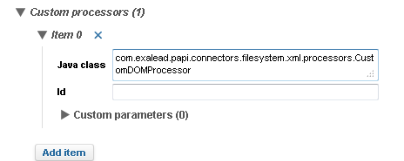

4. In the Administration Console, add it to the Custom processors by specifying its full class name in the Java class configuration entry, as shown in the following example.

Important: Repeat step 2 after migrating Exalead CloudView to a new version.
