About Possible Architectures

3DSpace Architecture
Standalone Agent Architecture
The following diagrams focus on REST server components. ENOVIA components are displayed in blue. ER Agent components are displayed in green.

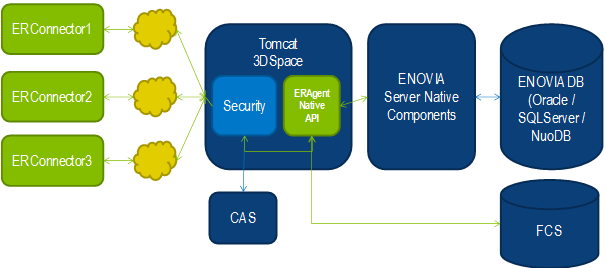

3DSpace Architecture
In a 3DSpace architecture:
• The ERAgent is fully embedded into the 3DSpace web application. There is no need to deploy it.
• The ERAgent native API handles queries and forwards them to the ENOVIA API and the FCS API.
• Security is delegated to the 3DSpace security component that provides ENOVIA connections to the ERAgent native API.

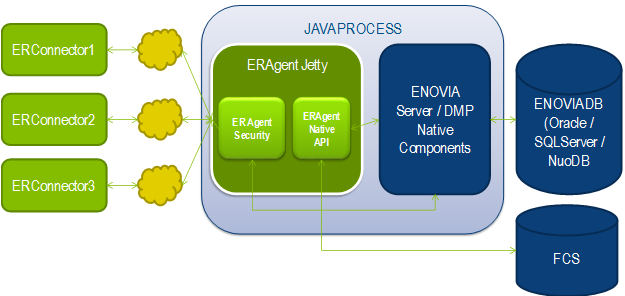

Standalone Agent Architecture
In a standalone mode:
• Deploy the ERAgent. See Installing the ENOVIA Standalone ERAgent.
• The ERAgent components are embedded into a Jetty server provided with the Standalone agent package.
• The ERAgent native API is strictly the same as the 3DSpace mode one.
• The ERAgent manages security and delegates authentication to the ENOVIA API.
• All ENOVIA native components run inside the java process of the Jetty server. There is no other process for the ERAgent.
